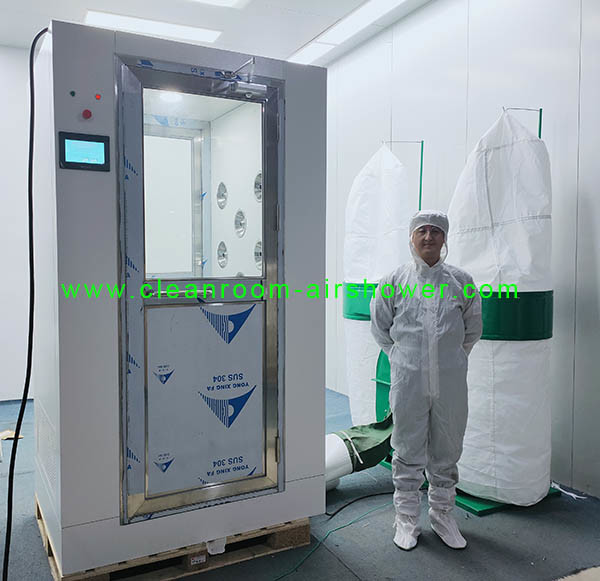

Air Shower with dust collector for Powder mill which has heavy dust
Material: T=1.2mm white powder coated steel for main body, stainless steel 304 for the base and the single-leaf swing doors
Air shower.pdf
According to the blowing method, the air shower room can be divided into: top air shower room, single-side blowing air shower room for one person, double-side blowing air shower room for 2 persons,Three-side blowing air shower room for one person, double-side blowing air shower room for 2 persons, Double-side blowing air shower room for multi-persons, L type air shower room,
According to the material of the casing:the air shower room can be divided into: stainless steel air shower, powder coated steel air shower.
According to the degree of automation, the air shower can be divided into: intelligent voice air shower, automatic door air shower, explosion-proof air shower, fast rolling door air shower
Air shower room can be divided according to different objects:Personal air shower room, cargo shower room, air shower tunnels, cargo shower tunnels.
Features:
The two doors of the automatic air shower are electronically interlocked and can function as an air lock chamber to prevent external pollution and unpurified air from entering the clean area.
Eliminate the staff to bring hair, dust, bacteria into the workshop, to meet the strict dust-free workshop purification standards of the workplace, meet the production environment pollution requirements, and produce high-quality products.
Size and Specifications:
| Product | Air shower room for one person, |
| External size | W1300xD1000xH2260mm |
| Internal size | W800xD900xH1960mm |
| Material: | T=1.2 mm powder coated steel for main body |
| Doors type | W=800mm single-leaf SS304 swing doors |
| Door closer | 2 SETs |
| Electric lock | 2 SETs |
| Indicator lights | Green / Red/Yellow, metal type |

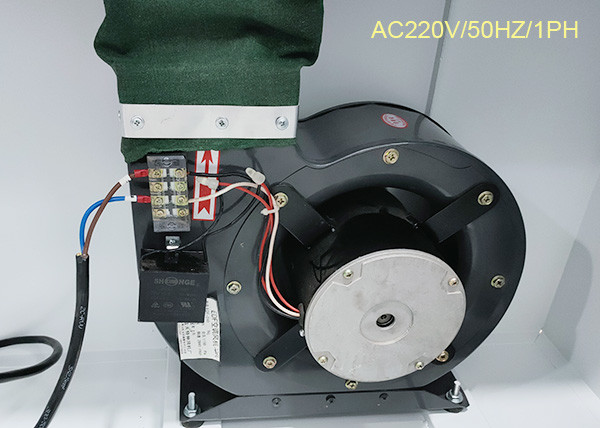

| Blower fan | 2sets,capacity: 2500CMH/set, AC220V/50HZ/1PH |
| 99.99% HEPA filter | 610*610*69mm 2 pcs |
| Pre filter | 1 pcs |
| Nozzle | 8+8=16pcs |
| Bloweing type | 2 -side blowing, wind speed: >24m/s |
| Control system | IC display |
| Photoelectric snesor | Omron brand 1pcs |
| LED light | 1x8W
|
Air shower photos:

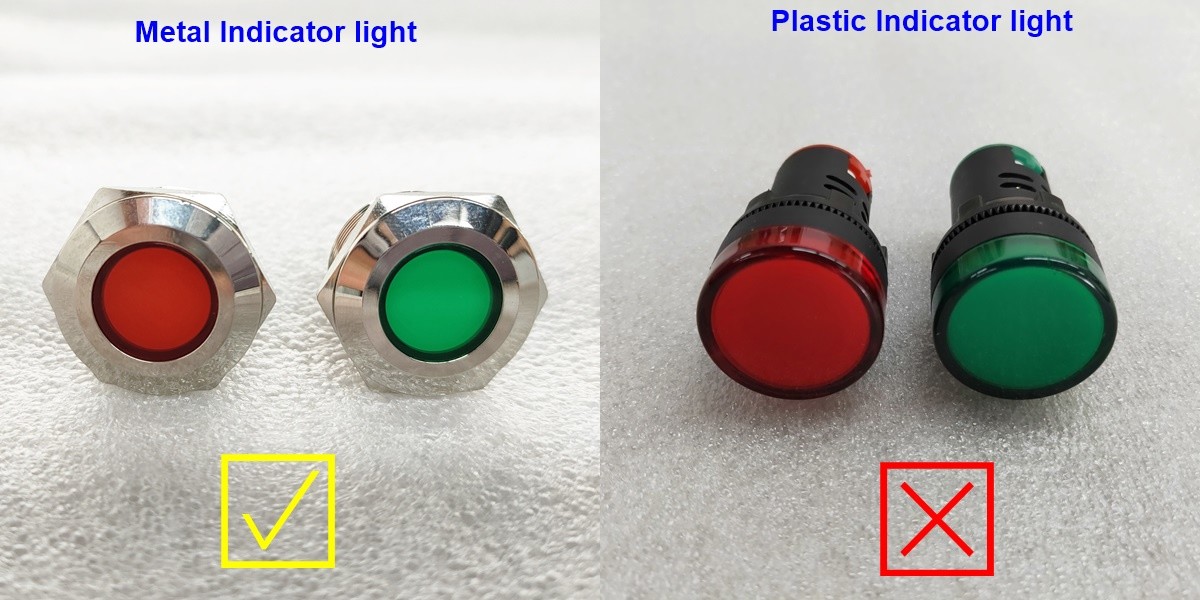

Metal Indicator light -----Good-looking, high quality

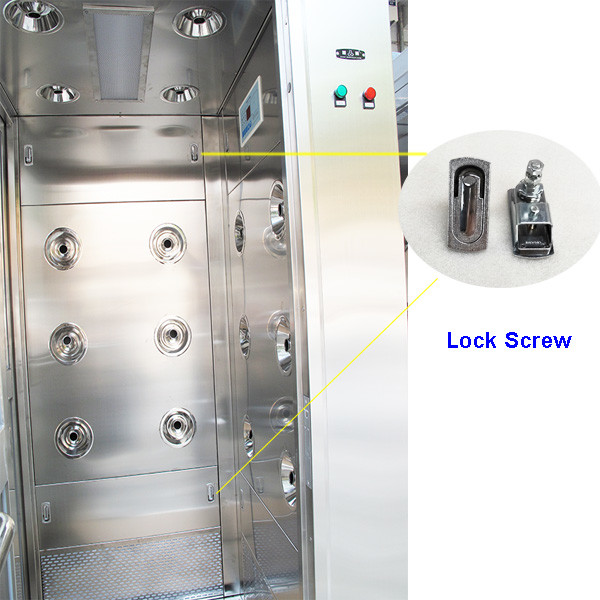

Lock Screws---It is easy for opening the panel inside and maintain air shower.
